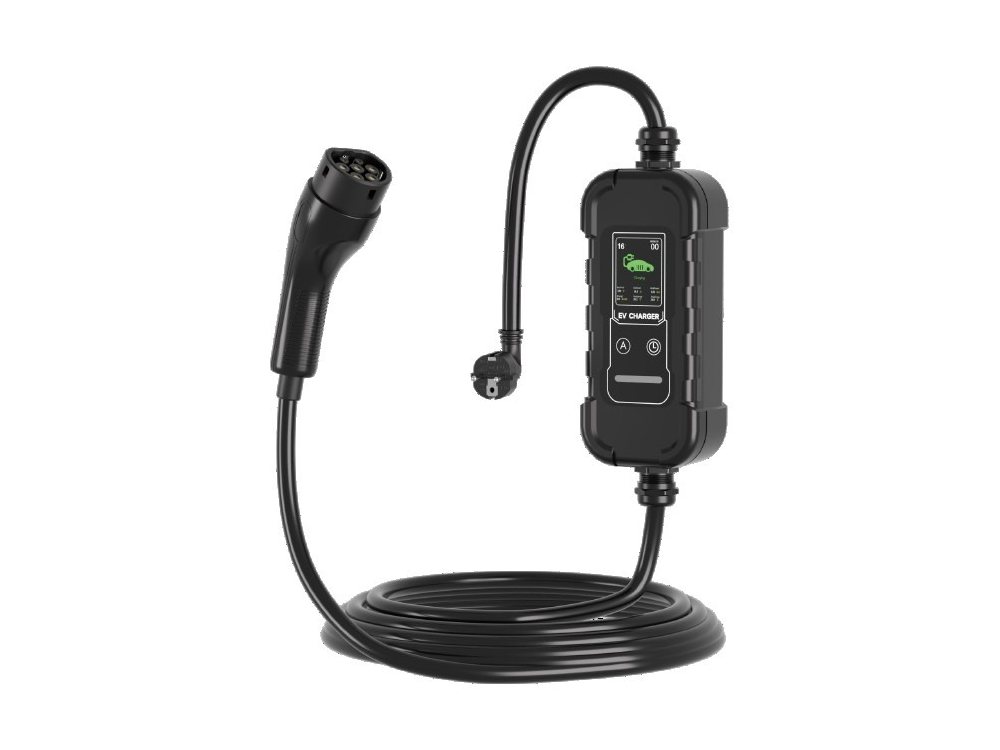

2.99 kW + 1×0.5mm² IEC 62196 Type 2 (UK plug) Portable EV Charger · EN62752 · EN62196-2&1 · EN62196 · EN50620
MOQ 50 pcs per model · prices quoted per project · datasheet and certificate set available on request
| Standard | EN62752 · EN62196-2&1 · EN62196 · EN50620 |
|---|---|
| Rated power | 2.99 kW + 1×0.5mm² |
| Rated voltage / frequency | 220V-250V / 50-60Hz |
| Adjustable current | 13A (Max) (6/8/10/13A) |
| RCD / leakage protection | 30mA for AC faults (Type A ) or 30mA for AC and 6mA for DC faults (Type A + 6) |
| Product dimensions | EV plug: 210×69×62mm Control Box: 105×68×237.6mm |
| Operating temperature | -35°C to 55°C |
Parameters are as published by the manufacturing partner for the model shown and may be revised without notice. Confirm critical values on your order confirmation.
Certification is held for the range and confirmed per model and per destination market on the order. Ask for the certificate covering your exact model code and we will send the documents that exist for it — and say plainly if a standard is not held.
Send your quantity and destination market - we will confirm price, lead time and the correct version for your connector standard.
