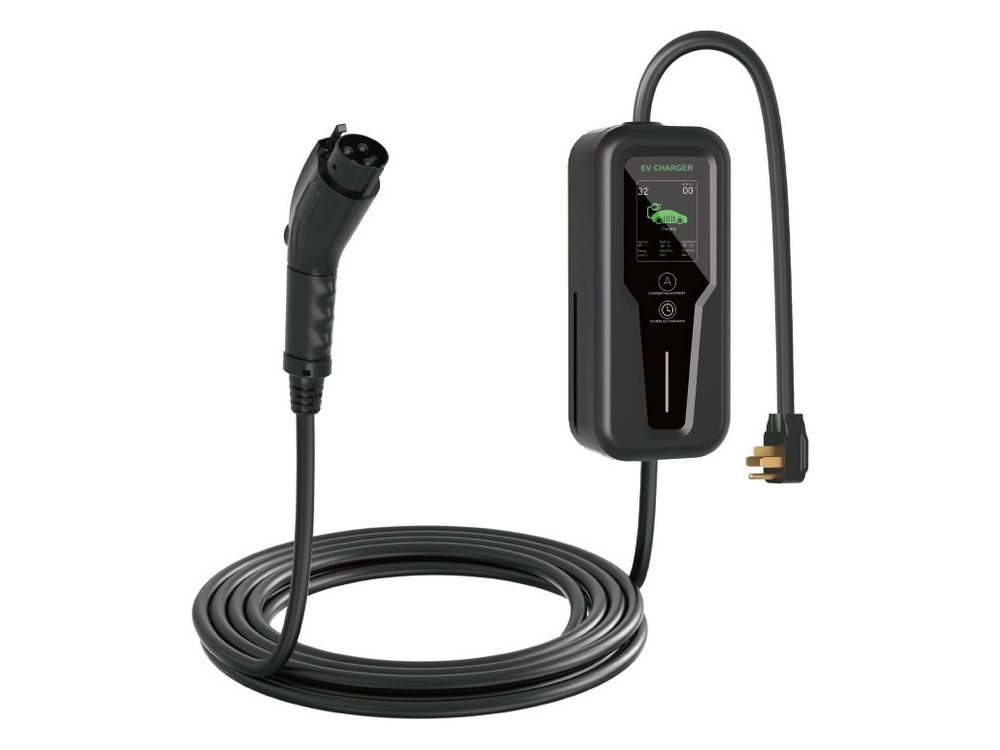

1.65 kW SAE J1772 Type 1 Portable EV Charger · SAE J1772 · UL2594 · UL62
MOQ 50 pcs per model · prices quoted per project · datasheet and certificate set available on request
| Standard | SAE J1772 · UL2594 · UL62 |
|---|---|
| Rated power | 1.65 kW |
| Rated voltage / frequency | 110V / 60Hz |
| Adjustable current | 15A (Max) (6/8/10/13/15A) |
| Cable specification | TPE OD:14.2 mm |
| RCD / leakage protection | CCID 20(US) |
| Product dimensions | EV plug: 220×65×64mm Control Box: 218×100×60mm |
| Operating temperature | -31°F to +131°F |
Parameters are as published by the manufacturing partner for the model shown and may be revised without notice. Confirm critical values on your order confirmation.
These are the same product family in different versions — a standard build, a version with extra current steps, and a three-phase build where one exists. Specify the exact model code on your enquiry.
| Model | Rated power | Rated voltage / frequency | Adjustable current | Cable specification | Standard |
|---|---|---|---|---|---|
| EV15A02US | 1.65 kW | 110V / 60Hz | 15A (Max) (6/8/10/13/15A) | TPE OD:14.2 mm | SAE J1772 · UL2594 · UL62 |
| EV15A02-2US | 1.65 kW | 110V / 60Hz | 15A (Max) (8/10/13/15A) | 3×14AWG+1×18AWG TPE OD:14.2 mm | SAE J1772 · UL2594 · UL62 |
Certification is held for the range and confirmed per model and per destination market on the order. Ask for the certificate covering your exact model code and we will send the documents that exist for it — and say plainly if a standard is not held.
Send your quantity and destination market - we will confirm price, lead time and the correct version for your connector standard.
