GB/T Portable MOQ 50 pcs per model

EV16A04CN

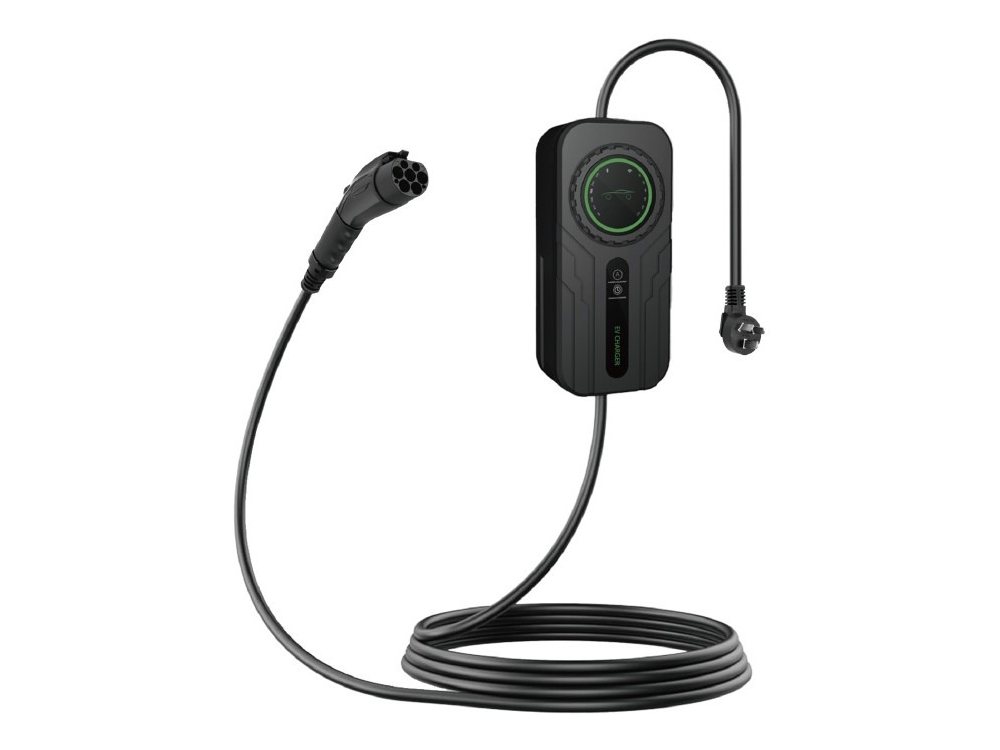

Name: DG Power EV16A04CN 3.5 kW GB/T Portable EV Charger
Brand: DG Power
SKU: EV16A04CN
Availability: InStock

3.5 kW GB/T Portable EV Charger · GB/T20234

3.5 kWRated power

GB/TConnector

16AAdjustable current

220V-250V / 50-60HzVoltage

Request a quote Private label this model

MOQ 50 pcs per model · prices quoted per project · datasheet and certificate set available on request

Connector standard: this model uses the GB/T connector for China and equivalent GB/T markets and is not suitable for European or North American installations. For Type 2, J1772 or NACS models, use the market sections.

Specifications

8 parameters

Standard	GB/T20234
Rated power	3.5 kW
Rated voltage / frequency	220V-250V / 50-60Hz
Adjustable current	16A
Cable specification	TPE OD:12.5 mm
RCD / leakage protection	30mA for AC and 6mA for DC faults (Type A + 6)
Product dimensions	mm Control Box: 185×80×52.5mm
Operating temperature	-35°C to 55°C

Parameters are as published by the manufacturing partner for the model shown and may be revised without notice. Confirm critical values on your order confirmation.

Protection functions

6 functions

Over load protectionLeakage ProtectionGround protectionShort circuit protectionFlame retardantSurge protection

Certifications & compliance

Mode 2 portable charger range

RoHS

Certification is held for the range and confirmed per model and per destination market on the order. Ask for the certificate covering your exact model code and we will send the documents that exist for it — and say plainly if a standard is not held.

Scope: this model is built to the GB/T standard for China and equivalent GB/T markets. Corrections and certificates follow the standard that applies to the destination market you order for.

EV16A04CN

Specifications

Protection functions

Certifications & compliance
