Type 1 Portable MOQ 50 pcs per model

EV16A06US

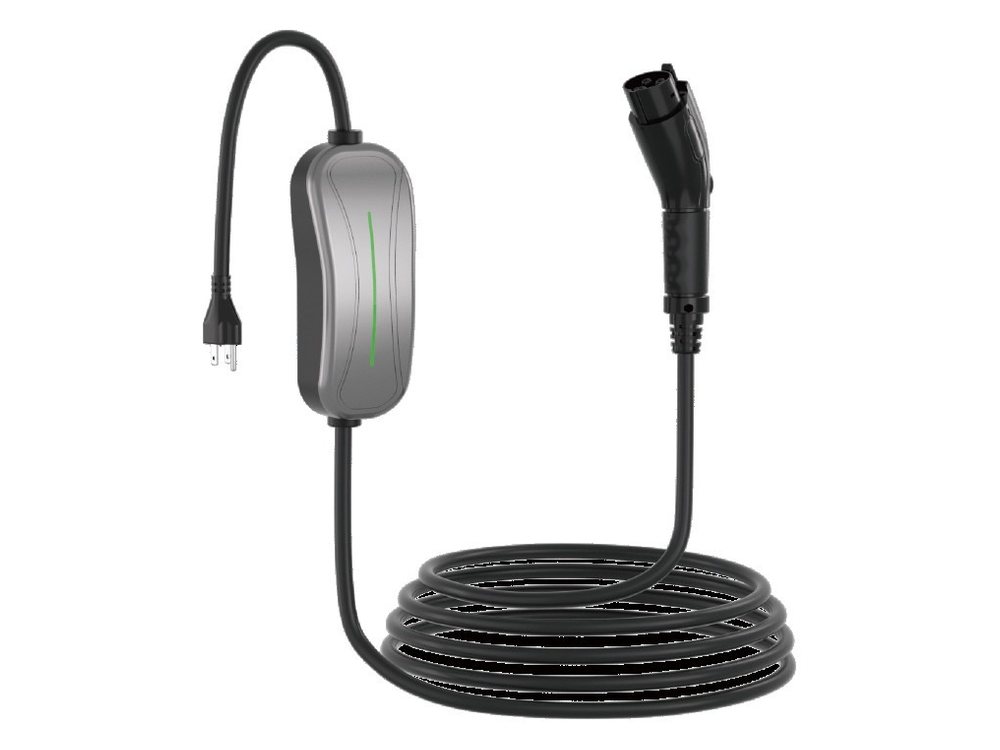

Name: DG Power EV16A06US 3.84 kW SAE J1772 Type 1 Portable EV Charger
Brand: DG Power
SKU: EV16A06US
Availability: InStock

3.84 kW SAE J1772 Type 1 Portable EV Charger · SAE J1772 · UL2594 · UL62

3.84 kWRated power

SAE J1772 Type 1Connector

16A (6/8/10/12/14/16A)Adjustable current

240V / 60HzVoltage

Request a quote Private label this model

MOQ 50 pcs per model · prices quoted per project · datasheet and certificate set available on request

Listing: North American listed versions are produced to order. If your market or funding programme requires an ETL or UL listing, tell us at enquiry - it is confirmed before production, and it adds test and review time to the schedule.

Specifications

8 parameters

Standard	SAE J1772 · UL2594 · UL62
Rated power	3.84 kW
Rated voltage / frequency	240V / 60Hz
Adjustable current	16A (Max) (6/8/10/12/14/16A)
Cable specification	3×12AWG+1×18AWG TPE OD:14.2 mm
RCD / leakage protection	CCID 20(US)
Product dimensions	EV plug: 220×65×64mm Control Box: 107×63×235mm
Operating temperature	-31°F to +131°F

Parameters are as published by the manufacturing partner for the model shown and may be revised without notice. Confirm critical values on your order confirmation.

Protection functions

10 functions

Over voltage protectionUnder voltage protectionOver load protectionLeakage ProtectionGround protectionOver temperature protectionLightning protectionShort circuit protectionFlame retardantSurge protection

Certifications & compliance

Mode 2 portable charger range

ETLFCCRoHS

Certification is held for the range and confirmed per model and per destination market on the order. Ask for the certificate covering your exact model code and we will send the documents that exist for it — and say plainly if a standard is not held.

EV16A06US

Specifications

Protection functions

Certifications & compliance
